Pack 1

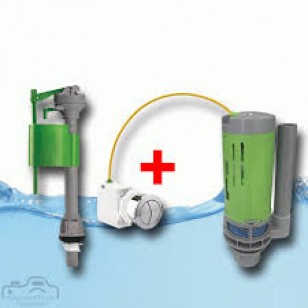

The complete Cistern Repair Pack 1 with flush & fill valves

An ideal pack to repair or refurbish a WC / toilet cistern with a top flush cistern cover or in a furniture unit where the push button is on the counter top. Bring old tired cisterns back to life and working like new. The fill valve in this pack will suit cisterns that can accomodate a fixed 8" high fill valve.

Dual flush valve allows for full or half flush.

Pack comprises of:

1 X FK-BE1 Bottom entry fixed height (8") fill valve.

• Easy twist water level adjustment with a range of 50mm.
• Anti syphon.
• Fast fix with all washers and nuts supplied.
• 1/2” shank.
• Install with lock nut provided.
• Requires hand tightening only
• Fill valve operating pressure 0.2bar - 5.5bar

 1 X FK-DF-TP Dual flush top press flush valve.

• Wide range of water level adjustment for full and half flush.
• Suitable for different tank dimensions.
• Soft activation button.

Flush Valve Dimensions -

• Flush Valve Height : 193mm
• Internal Overflow Height: 230mm
• Width (including internal overflow): 125mm
• Depth: 80mm
• Button Flange Width: 50mm
• Width Of The Underside Of The Button: 40mm
• Push button rods are 110mm long as standard but can be cut to match cistern height
• The internal measurement from the bottom of the cistern to the top of the cistern lid/ countertop needs to be - 333mm MAX or 258mm MIN.

 1 X FK-K Cistern Re-Fixing Kit

• A pair of Cistern bolts for re-fixing a close coupled cistern to the pan.
• Rubber sealing washer
• An overflow bung and washer.
• Model: FK-SF-TP
• Manufactured by: FlushKING

Pack 2

The complete Cistern Repair Pack 2 with flush & fill valves

An ideal pack to repair or refurbish a WC / toilet cistern with a top flush cistern cover or in a furniture unit where the push button is on the counter top. Bring old tired cisterns back to life and working like new. The fill valve is adjustable in height allowing installation in a range of differen height cisterns.

Dual flush valve allows for full or half flush

Pack comprises of:

1 X FK-BE2 Bottom entry adjustable fill valve.

• Easy twist water level adjustment with a range of 50mm.
• Anti syphon.
• Adjustable height 225mm  - 330mm to fit different size cisterns.
• 1/2” plastic shank.
• Install with lock nut provided.
• Requires hand tightening only
• Fill valve operating pressure 0.2bar - 5.5bar

 1 X FK-DF-TP Dual flush top press flush valve.

• Wide range of water level adjustment for full and half flush.
• Suitable for different tank dimensions.
• Soft activation button.

Flush Valve Dimensions -

• Flush Valve Height : 193mm
• Internal Overflow Height: 230mm
• Width (including internal overflow): 125mm
• Depth: 80mm
• Button Flange Width: 50mm
• Width Of The Underside Of The Button: 40mm
• Push button rods are 110mm long as standard but can be cut to match cistern height
• The internal measurement from the bottom of the cistern to the top of the cistern lid/ countertop needs to be - 333mm MAX or 258mm MIN.

1 X FK-K Cistern Re-Fixing Kit

• A pair of Cistern bolts for re-fixing a close coupled cistern to the pan.
• Rubber sealing washer
• An overflow bung and washer.

Pack 3

The complete Cistern Repair Pack 3 with flush & fill valves

An ideal pack to repair or refurbish an old lever WC / toilet cistern with a top flush cistern cover or in a furniture unit where the push button is on the unit front. Bring old tired cisterns back to life and working like new. The fill valve in this pack will suit cisterns that can accomodate a fixed 8" high fill valve.

With a Dual flush allowing for full or half flush

Pack comprises of:

1 X FK-BE1 Bottom entry fixed height (8") fill valve.

• Easy twist water level adjustment with a range of 50mm.
• Anti syphon.
• Fast fix with all washers and nuts supplied.
• 1/2” shank.
• Install with lock nut provided.
• Requires hand tightening only
• Fill valve operating pressure 0.2bar - 5.5bar

1 X FK-DF-C Flexi Mount flush valve.

• Wide range of water level adjustment for full and half flush.
• Suitable for different tank dimensions.
• Soft activation button.
• Cable operated.
• Button can be positioned on top of lid, front or side of tank.
• 29cm cable

1 X FK-K Cistern Re-Fixing Kit

• A pair of Cistern bolts for re-fixing a close coupled cistern to the pan.
• Rubber sealing washer
• An overflow bung and washer.

Pack 4

The complete Cistern Repair Pack 4 with flush & fill valves

An ideal pack to repair or refurbish an old lever WC / toilet cistern with a top flush cistern cover or in a furniture unit where the push button is on the unit front. Bring old tired cisterns back to life and working like new. The fill valve in this pack will suit cisterns that can accomodate a fixed 8" high fill valve.

With a Dual flush allowing for full or half flush

Pack comprises of:

1 X FK-BE2 Bottom entry adjustable fill valve.

• Easy twist water level adjustment with a range of 50mm.
• Anti syphon.
• Adjustable height 225mm  - 330mm to fit different size cisterns.
• 1/2” plastic shank.
• Install with lock nut provided.
• Requires hand tightening only
• Fill valve operating pressure 0.2bar - 5.5bar

1 X FK-DF-C Flexi Mount flush valve.

• Wide range of water level adjustment for full and half flush.
• Suitable for different tank dimensions.
• Soft activation button.
• Cable operated.
• Button can be positioned on top of lid, front or side of tank.
• 29cm cable

1 X FK-K Cistern Re-Fixing Kit

• A pair of Cistern bolts for re-fixing a close coupled cistern to the pan.
• Rubber sealing washer
• An overflow bung and washer.
